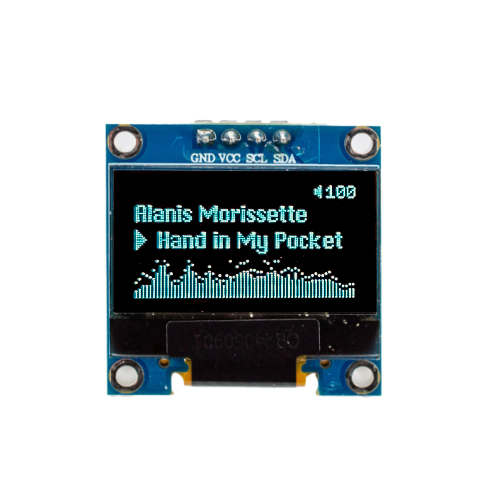

SSD1306 OLED Display

The SSD1306 is a 128×64 pixel monochrome OLED display driver, commonly found in compact 0.96" and 1.3" modules. It connects via I2C on address on 0x3c. and is one of the most popular displays in the maker community due to its affordability and sharp contrast.

Connections

Pin Assignments
