Waveshare 2.8inch Capacitive Touch Display

The built-in display extension enables high-quality touch display output and screen management for this display on Raspberry Pi devices. It supports a 480×640 IPS panel with optical bonding for enhanced clarity and up to 60Hz refresh rate over the native DSI interface. The display features five-point capacitive touch control with a 6H hardened toughened glass panel, and can manage backlight brightness programmatically via software. Compatible with Pi 5, CM5, 4B, CM4, 3B+, 3A+, 3B, CM3+, and CM3.

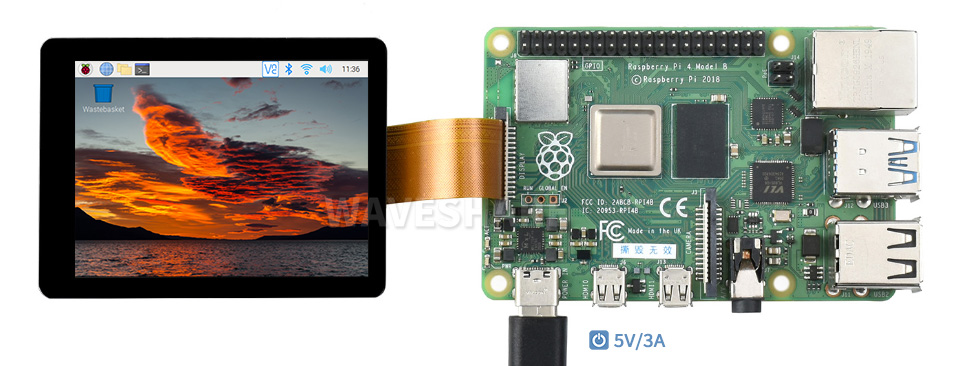

Just connect the display using the DSI ribbon cable as shown in the picture below and select it from the display settings in BerryAudio — no additional configuration required.

For further more information can be found on https://www.waveshare.com/wiki/2.8inch_DSI_LCD

Demo: https://youtu.be/UTv22oXzdd4?si=LcFwvi-BHtpjuOQB
