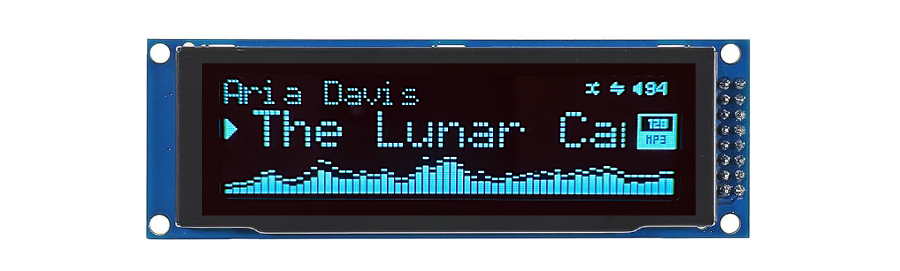

SSD1322 OLED Display

The SSD1322 is a 256×64 pixel grayscale OLED display driver that supports 16 levels of gray scale, making it ideal for displaying detailed graphics and smooth gradients. Unlike simpler monochrome displays, its grayscale capability allows for richer visual presentations. The display connects via SPI interface and is commonly found in 3.2" modules, offering excellent contrast and viewing angles thanks to OLED technology. Its relatively high resolution and grayscale support make it popular for berryaudio projects where visual quality matters compared to commercial ones

Demo: https://youtu.be/ijRanBypx6A

Connections

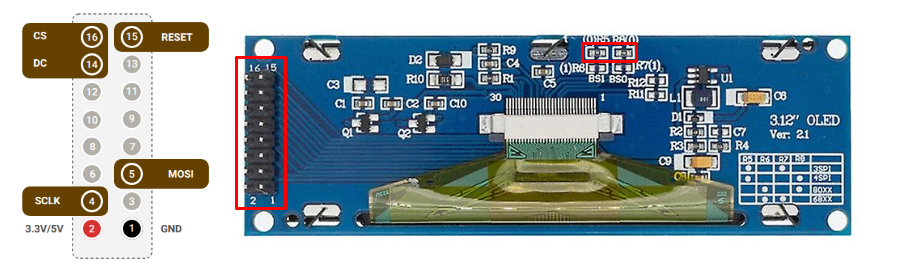

Make sure the Resistors are connected as seen the picture below. You may need to move the R6 resistor to R5

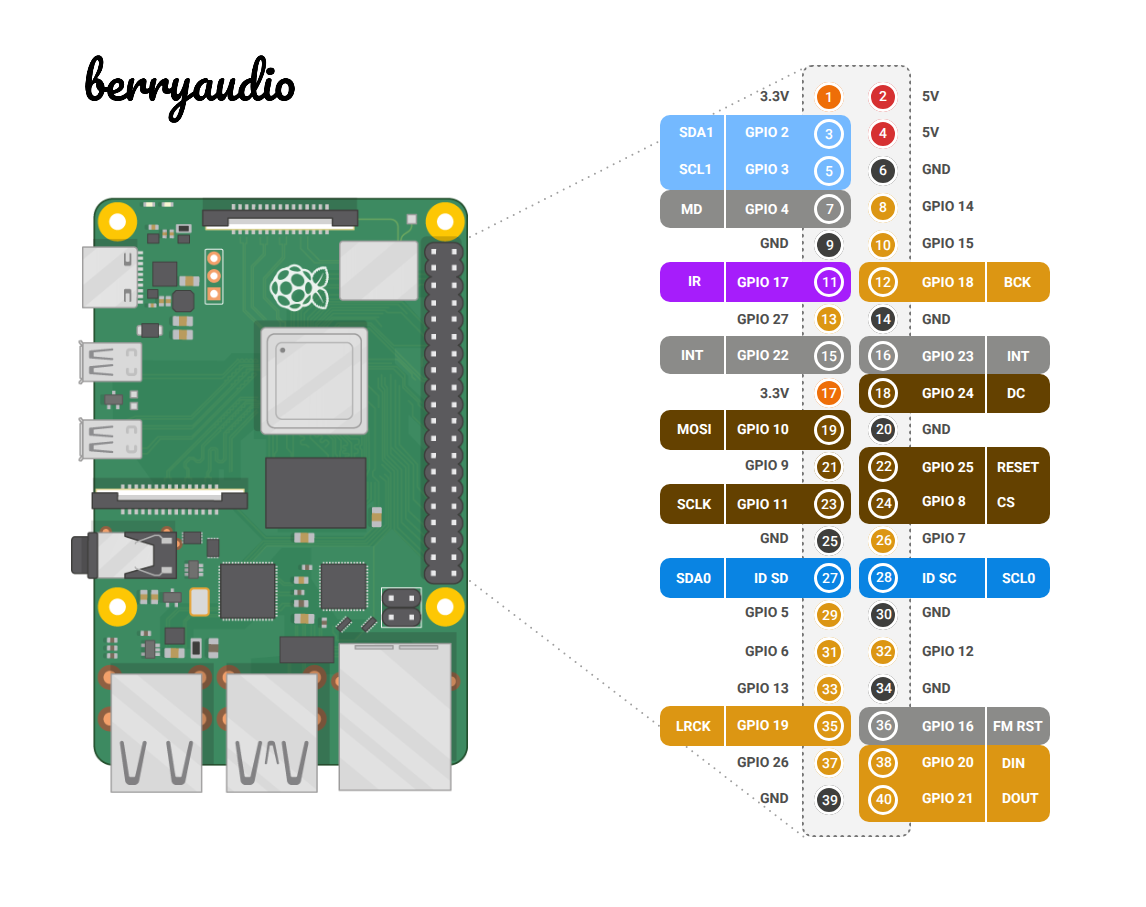

Pin Assignments
